TD04L Turbo Kit for Fiat 500 Abarth USA Model – Up to 285BHP By TMC Motorsport

TMC TD04L-PHASE 2 Hybrid Turbo Kit – Up to 285 BHP

For Fiat 500 Abarth (USA Model) | 1.4 MultiAir Engine

Take your Fiat 500 Abarth USA to the next level with the TMC TD04L-PHASE 2 Hybrid Turbo Kit, our most advanced bolt-on turbo upgrade developed specifically for the 1.4 MultiAir platform.

Featuring a revised compressor housing and a larger, lightened 7075 aluminium (Ergal) compressor wheel, this PHASE 2 turbo delivers increased airflow, strong response, and proven reliability. With the correct supporting modifications, this kit supports up to 285 BHP, making it ideal for high-performance street or track-focused builds.

Performance Potential

Safe Power Output: 260 BHP with supporting modifications
Maximum Output: Up to 285 BHP (hardware dependent)
Fuel & Tuning: ECU remap and 99-octane fuel required
Boost Capability: Up to approximately 1.7 bar

Supporting Modifications Required

(Available in our webshop)

Upgraded intercooler
High-flow intake system
Full turbo-back exhaust system
Forged pistons and rods (recommended for sustained high power)
Upgraded camshafts (required for 240+ BHP on MultiAir engines)
Brake and suspension upgrades strongly recommended

Need guidance? Contact us for tailored recommendations.

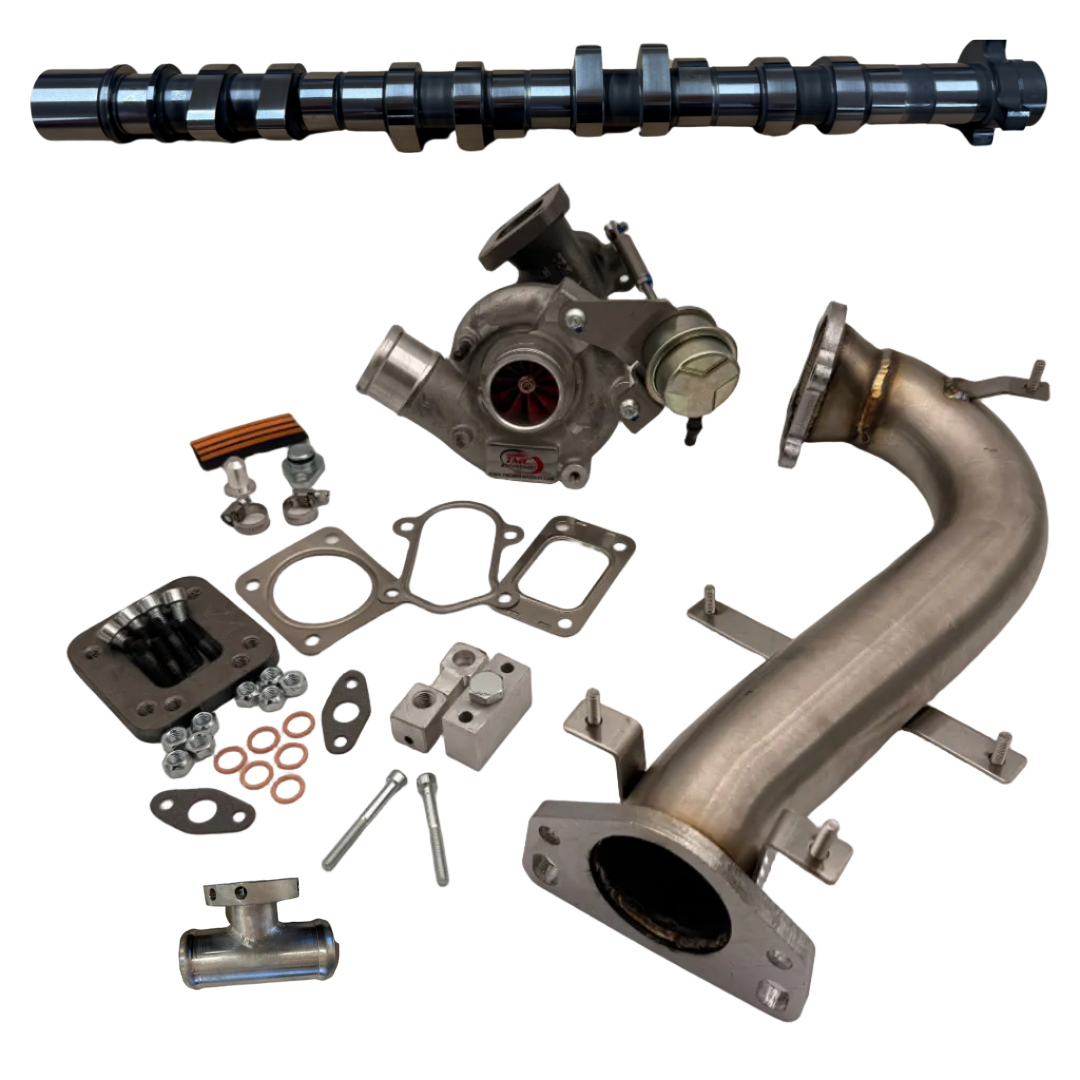

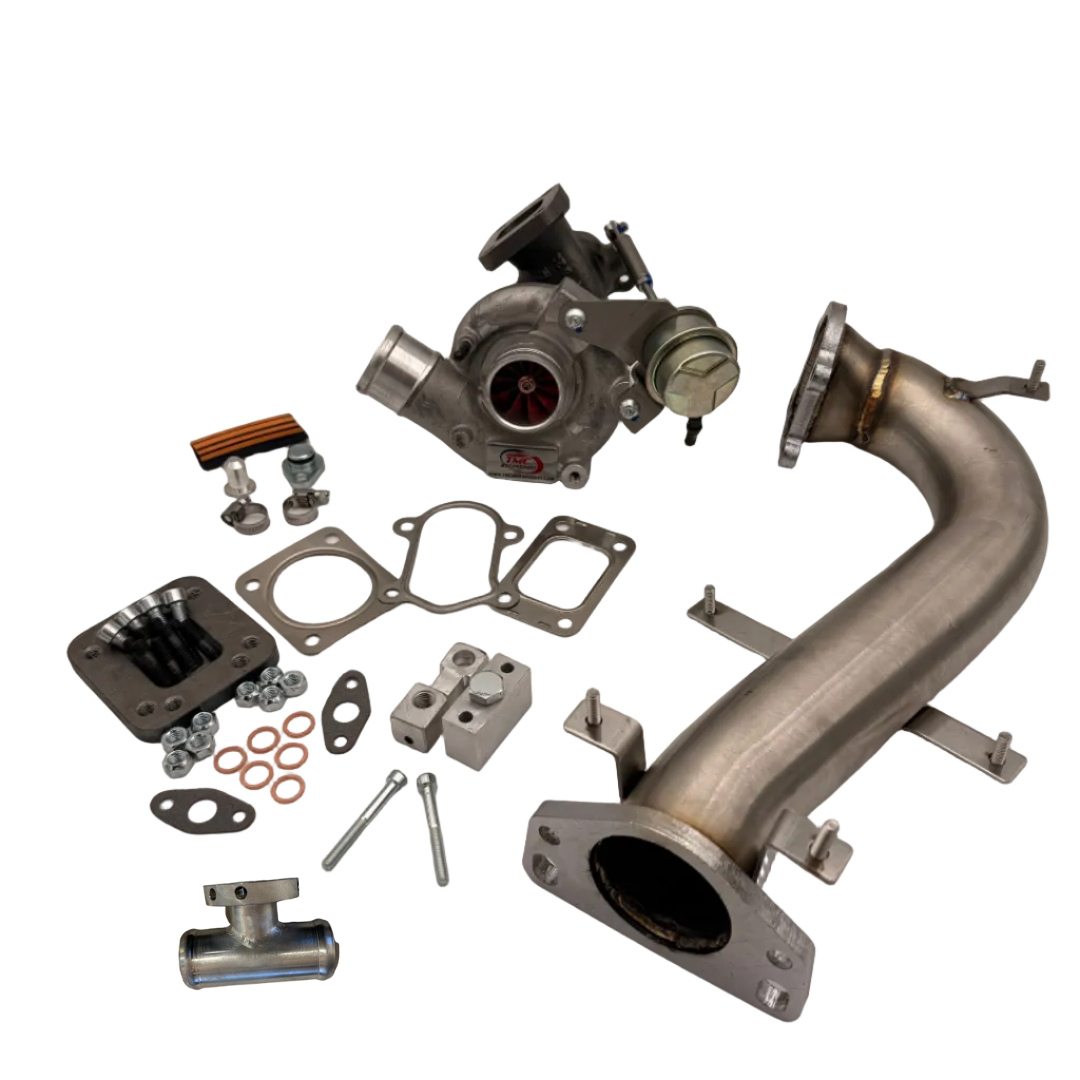

What’s Included in the Full Kit

TD04L-PHASE 2 Hybrid Turbocharger
Genuine Mitsubishi core, professionally balanced
Larger red 7075 aluminium (Ergal) compressor impeller
22 mm outlet for increased airflow
860 °C continuous rating (920 °C peak)
0.6 bar actuator
De-cat downpipe
Modified oil hose and oil spacer bolts
7075 aluminium (Ergal) water line blanking cap
Blow-off valve relocation adapter (required for MultiAir – included)
Flanges, gaskets, clamps, bolts, and all required fitting hardware

Important Notes

3-bar MAP and boost sensors are not included, as all Fiat 500 Abarth USA models are factory-equipped with these.

390 cc injectors are not required. The factory USA injectors are suitable for builds up to approximately 250 BHP. Higher power levels may require injector upgrades depending on calibration.

Genuine Quality – No Compromises

This turbo kit is developed in partnership with Saito Italy, the authorised European Mitsubishi turbo distributor. All kits include 100% genuine Mitsubishi components, professionally modified and balanced for performance, durability, and consistency.

Warning: Low-cost imitation turbochargers are known to fail under load, risking catastrophic engine damage. We supply proven, race-grade hardware designed for serious builds.

Saving now could cost you more later.

Fitment & Compatibility

Direct fit for Fiat 500 Abarth (USA Model)
Compatible with 1.4 MultiAir engine
ECU recalibration required after installation
Intended for off-road or motorsport use

Please select the correct variant to match your build, or contact us for advice.

Still Unsure?

Get in touch. We’re happy to confirm fitment, recommend supporting modifications, and help you build the right setup the first time.
