Fiat 500 1.4 16V BMC CDA High Performance Intake System

SKU: ACCDASP-43

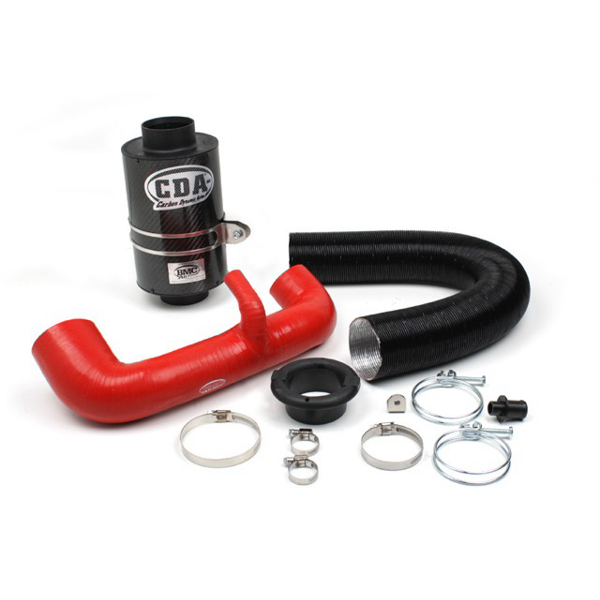

BMC CDA high performance intake system suitable for the Fiat 500 1.4 16V The CDA filtering system is composed of a cylindrical carbon fibre airbox containing a washable filtering element. The choice of this composite material is due to the fact that carbon has low thermal conductivity allowing insulation from the engine heat to the aspirated air. Replacing the original airbox with the CDA means that fresh air is channelled directly to the filter, thermally insulated inside the carbon airbox and then conveyed to the engine through an air flow deflector with minimum loss of power. The CDA filtration system is connected to a frontal air intake via a flexible aluminium tube. Thanks to the dynamic air intake you get a real supercharging system that conveys fresh air to the air box at a speed and capacity greater than that of traditional systems. The air flow entering the dynamic air intake is accelerated further thanks to the air flow deflector inside the carbon fibre airbox. Dynamic over-boosting, greater air flow, higher pressure and colder air are the elements which help to significantly increase the performance of the engine both in terms of power and torque, as demonstrated by dyno tests which were carried out. Important information The original plastic cylinder head cover (into which the original air filter housing is integrated) has to be removed when installing the CDA-kit. The CDA-Kit does not need this plastic cover. Nethertheless BMC offers a specially designed cover (an aluminium sheet) for this engine which can be seen on the third and fourth photo. It can be ordered as an option (delivery time about two weeks).
Please Contact Us For Stock Availability.
