TD04L Turbo Kit for Abarth 500 / 595 / 695 – Up to 260BHP By TMC Motorsport

TMC TD04L Hybrid Turbo Kit – Up to 260 BHP

For Abarth 500 / 595 / 695 | 1.4 T-Jet & 1.4 MultiAir Engines

Unleash the full potential of your Abarth with the TMC TD04L Hybrid Turbo Kit, a proven and reliable upgrade designed to deliver strong, usable performance with excellent spool characteristics. With the correct supporting modifications, this kit supports up to 260 BHP, making it an ideal fast-road and track-capable solution.

This package is based around the TD04L-PHASE 1 hybrid turbo, developed for consistent performance and long-term reliability across both T-Jet and MultiAir platforms.

Performance Potential

Safe Power Output: 235 BHP with supporting modifications
Maximum Output: Up to 260 BHP (hardware dependent)
Boost Capability: Up to approximately 1.7 bar
Fuel & Tuning: ECU remap and 99-octane fuel required

Supporting Modifications Required

(Available in our webshop)

Upgraded intercooler
High-flow intake system
Full performance exhaust system

Engine-specific requirements:
• 1.4 T-Jet:
 – Forged pistons and rods recommended for higher output builds
 – Upgraded camshafts required for 270+ BHP

• 1.4 MultiAir:
 – Upgraded camshafts required for 240+ BHP

Upgraded brakes and suspension are strongly recommended to match the increased performance.

Need advice? Contact us for tailored build recommendations.

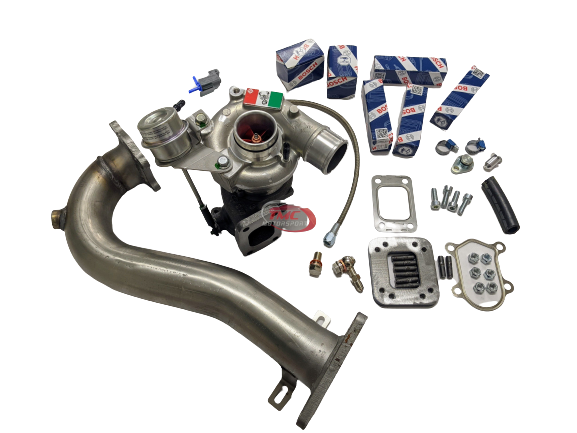

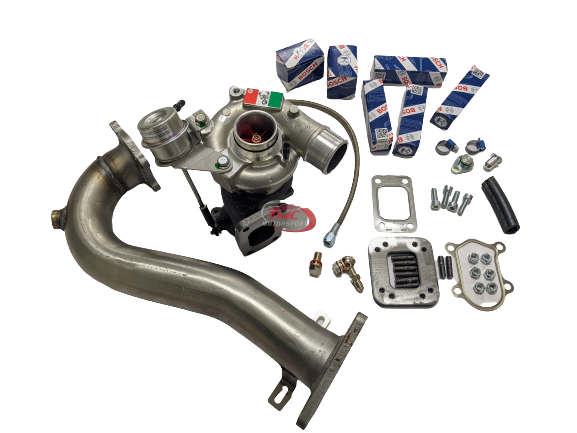

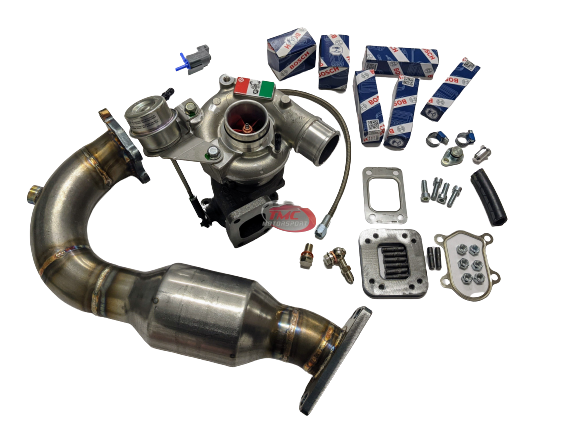

What’s Included in the Full Kit

TD04L-PHASE 1 Hybrid Turbocharger
Genuine Mitsubishi core, professionally balanced
Red hard-anodised 7075 aluminium (Ergal) compressor impeller
860 °C continuous temperature rating (920 °C peak)
0.6 bar actuator
De-cat downpipe

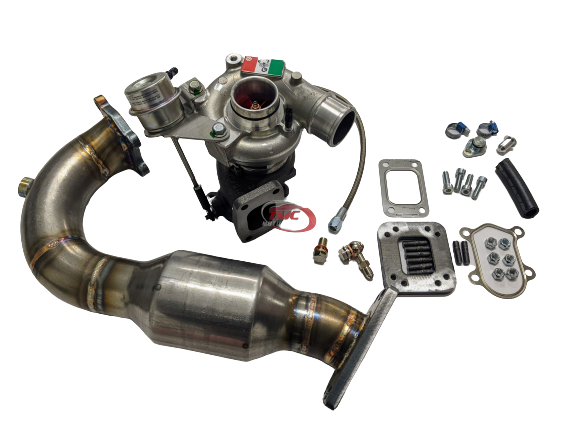

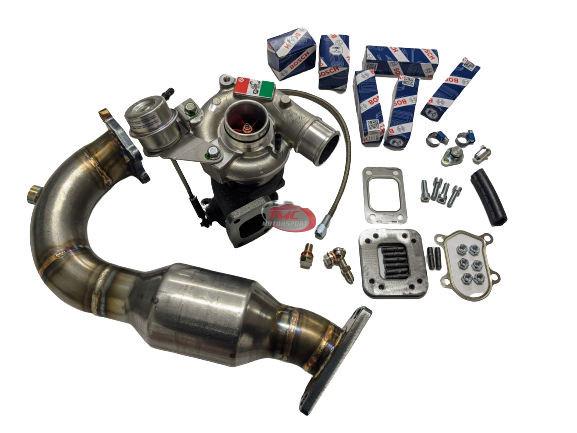

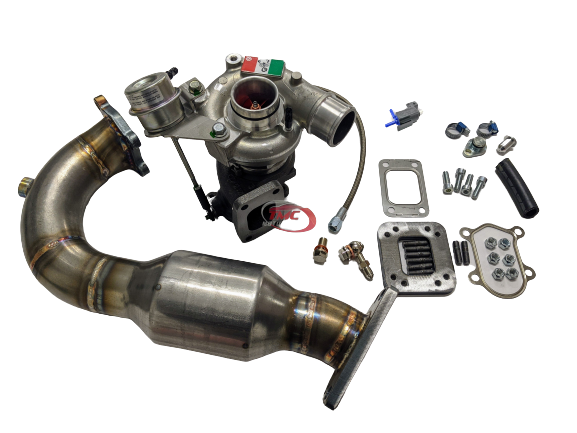

(Optional sports catalyst available separately – may limit peak power)
Bosch 390 cc injectors
(required unless using Abarth Punto Evo or Abarth 124 Spider)
Bosch 3 bar MAP and boost sensors
(required unless already equipped with the factory 180 BHP setup)
Modified oil hose, oil spacer bolts, and water hose cap

Euro 6 kits include an uprated Pierburg valve for improved boost stability.

Flanges, gaskets, clamps, bolts, nuts, and all required fitting hardware are included.

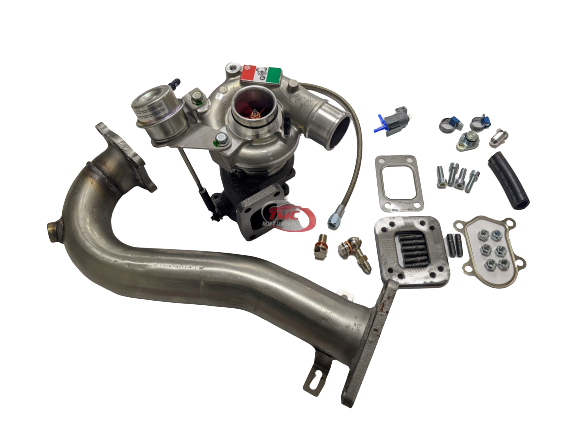

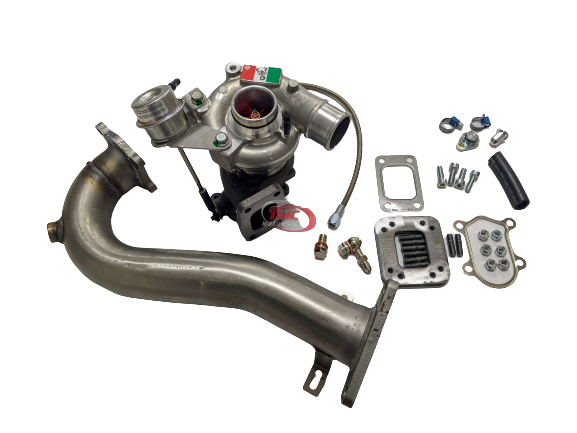

Note: Basic kits do not include injectors or sensors.

Genuine Quality – No Compromises

This turbo kit is developed in partnership with SAITO Italy, the authorised European distributor for Mitsubishi turbochargers. All kits include 100% genuine Mitsubishi components, professionally modified and balanced for consistent performance and durability.

Warning: Cheap imitation turbochargers are known to fail under load, risking serious engine damage. We supply proven hardware designed for real-world performance.

If it seems too good to be true, it probably is.

Fitment & Compatibility

Direct fit for Abarth 500 / 595 / 695
Suitable for 1.4 T-Jet and 1.4 MultiAir engines

ECU recalibration required after installation
Intended for off-road or motorsport use

Please contact us if you are unsure which variant is best suited to your build.

Still Have Questions?

Get in touch. We’re happy to help you choose the right setup and support you through your build from start to finish.
