VW Transporter T5 T6 – T32 – Bilstein Height Adjustable Suspension Kit – B14

VW TRANSPORTER T5 T6 – T32 – BILSTEIN HEIGHT ADJUSTABLE SUSPENSION KIT – B14

Bilstein B14 height-adjustable suspension kit, heavy-duty chassis with comfortable road performance, lowering lateral inclination, pitch, and rolling motion at the same time.  Suitable for vehicles with equipment version 1BH, FWD and AWD.

VW T5 (7H0,7H9), VW T6 (7E00), suitable for vehicles with FWD and AWD Bilstein B14, FA and RA height adjustable.

Only suitable for:

• for vehicles with serial equipment component 1BH, heavy-duty chassis, or for vehicles with clamp fastening on the front axle (T32).  *Please note, always check the installed serial shock absorber before ordering
• Vehicles without DCC

Axle load limit:

• FA: 1710 kg
• RA: 1720 kg

Lowering:

• FA: 40 – 70 mm
• RA: 40 – 70 mm

Included:

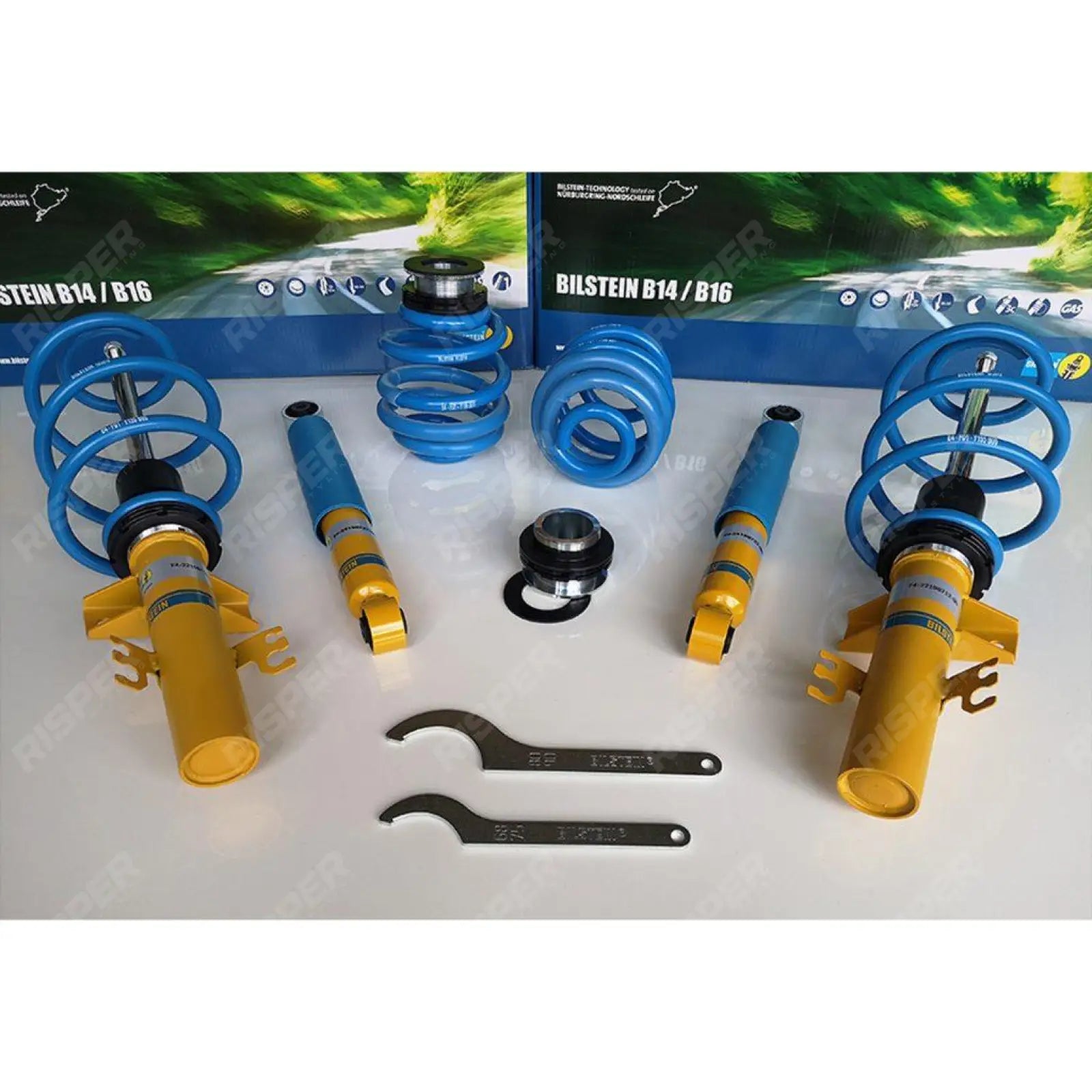

• Front axle threaded strut housings, rear axle adjustable springs and dampers

The final lowering depends on the individual configuration of the vehicle.

After mounting the height-adjustable suspension, the position of the headlamps and axle needs to be checked and may need to be re-adjusted.  Additionally and depending on the serial car configuration further technical systems (for example, lane assist; adaptive cruise control; cornering lights, camera systems, etc.) need to be checked and possibly re-adjusted.  It is necessary to follow the current instructions of the manufacturer when doing so.  This may be at an additional cost.

Fitment:
VW T5 Transporter 2003 - 2009 Models
VW T5.1 Transporter 2010 - 2015 Models
VW T6 Transporter 2015 - 2019 Models
VW T6.1 Transporter 2019> Models
