TD04L Turbo Kit for Abarth Punto Evo / Grande – Up to 285BHP By TMC Motorsport

TMC TD04L-PHASE 2 Hybrid Turbo Kit – Up to 285 BHP

For Abarth Punto Evo & Grande Punto | 1.4 MultiAir & 1.4 T-Jet Engines

Take your Abarth Punto Evo or Grande Punto to the next level with the TMC TD04L-PHASE 2 Hybrid Turbo Kit, our most advanced TD04L-based upgrade developed for high-output 1.4 platforms.

Featuring a revised compressor housing and a larger, lightened 7075 aluminium (Ergal) compressor wheel, the PHASE 2 turbo delivers increased airflow, strong spool characteristics, and proven reliability. With the correct supporting modifications, this kit supports up to 285 BHP, making it suitable for serious fast-road or track-focused builds.

This package is tailored to both:

• 1.4 MultiAir applications (Punto Evo)

• 1.4 T-Jet applications (Grande Punto)

with engine-specific requirements clearly defined below.

Performance Potential

Safe Power Output: 260 BHP with supporting modifications
Maximum Output: Up to 285 BHP (hardware and engine dependent)
Fuel & Tuning: ECU remap and 99-octane fuel required
Boost Capability: Up to approximately 1.7 bar

Supporting Modifications Required

(Available in our webshop)

Upgraded intercooler
High-flow intake system
Full turbo-back exhaust system

Engine-specific requirements:
• 1.4 MultiAir (Punto Evo):
 – Upgraded camshafts required for 240+ BHP

• 1.4 T-Jet (Grande Punto):
 – Forged pistons and rods recommended for 270+ BHP
 – Upgraded camshafts required for 270+ BHP

Brake and suspension upgrades are strongly recommended for safety and control.

Need guidance? Contact us for tailored recommendations.

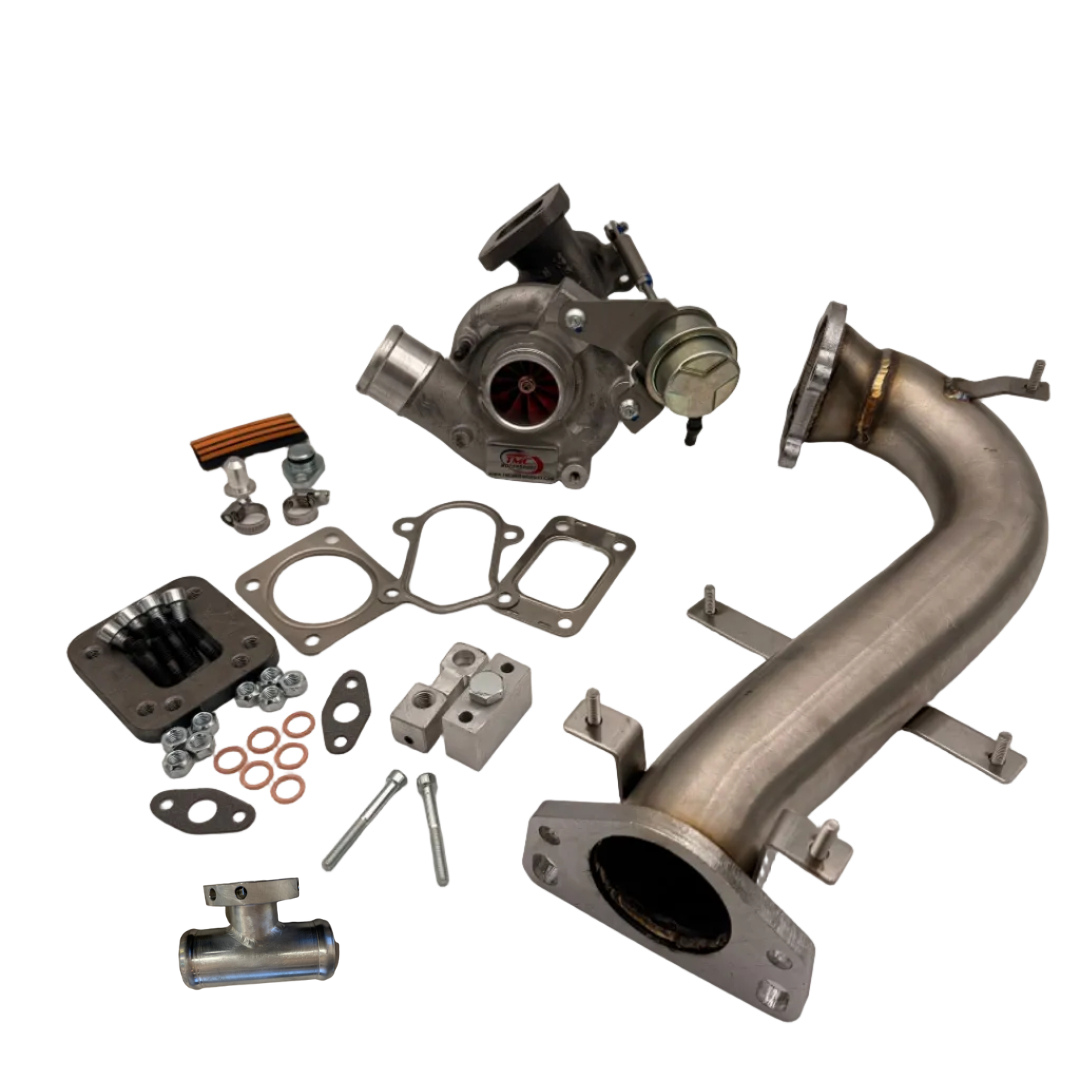

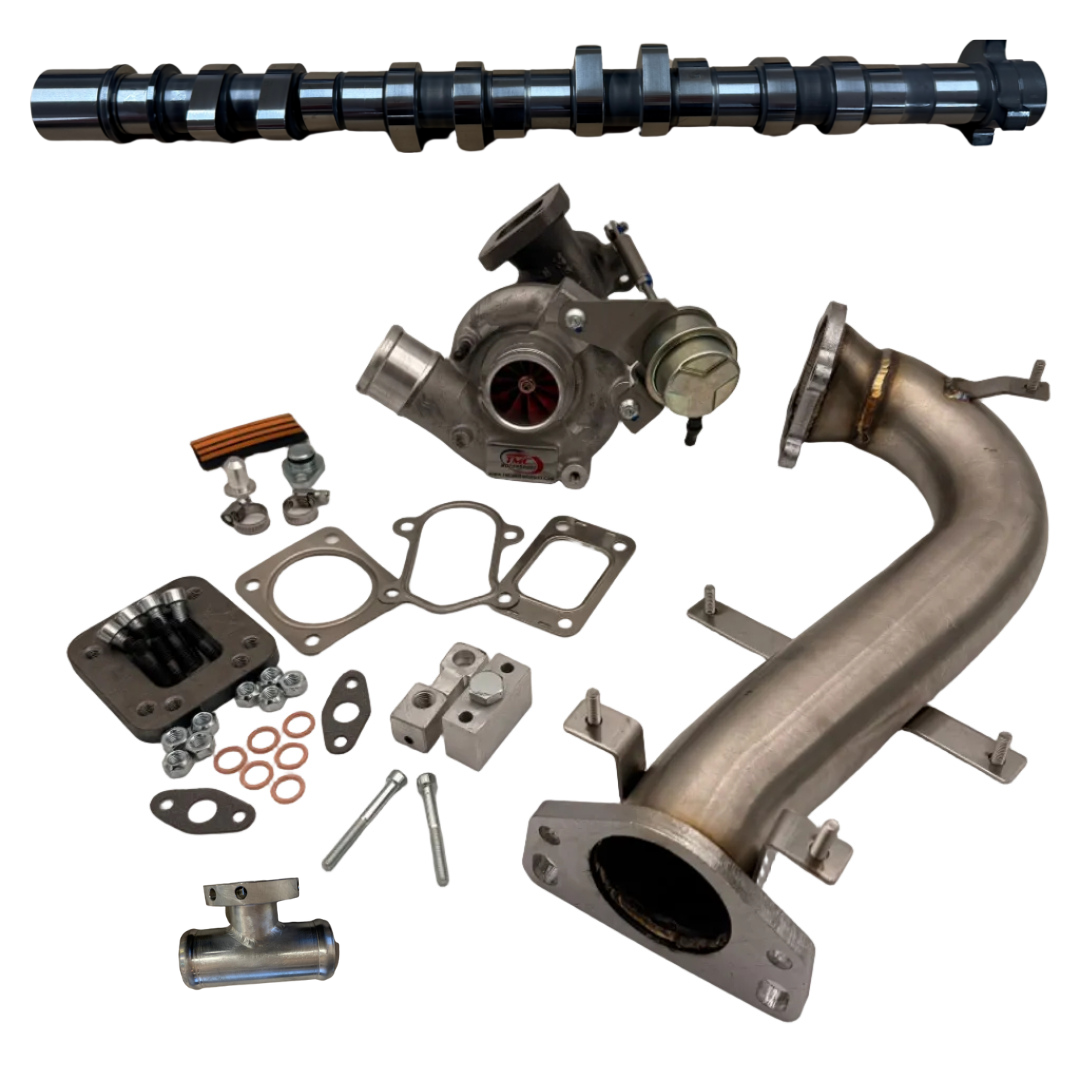

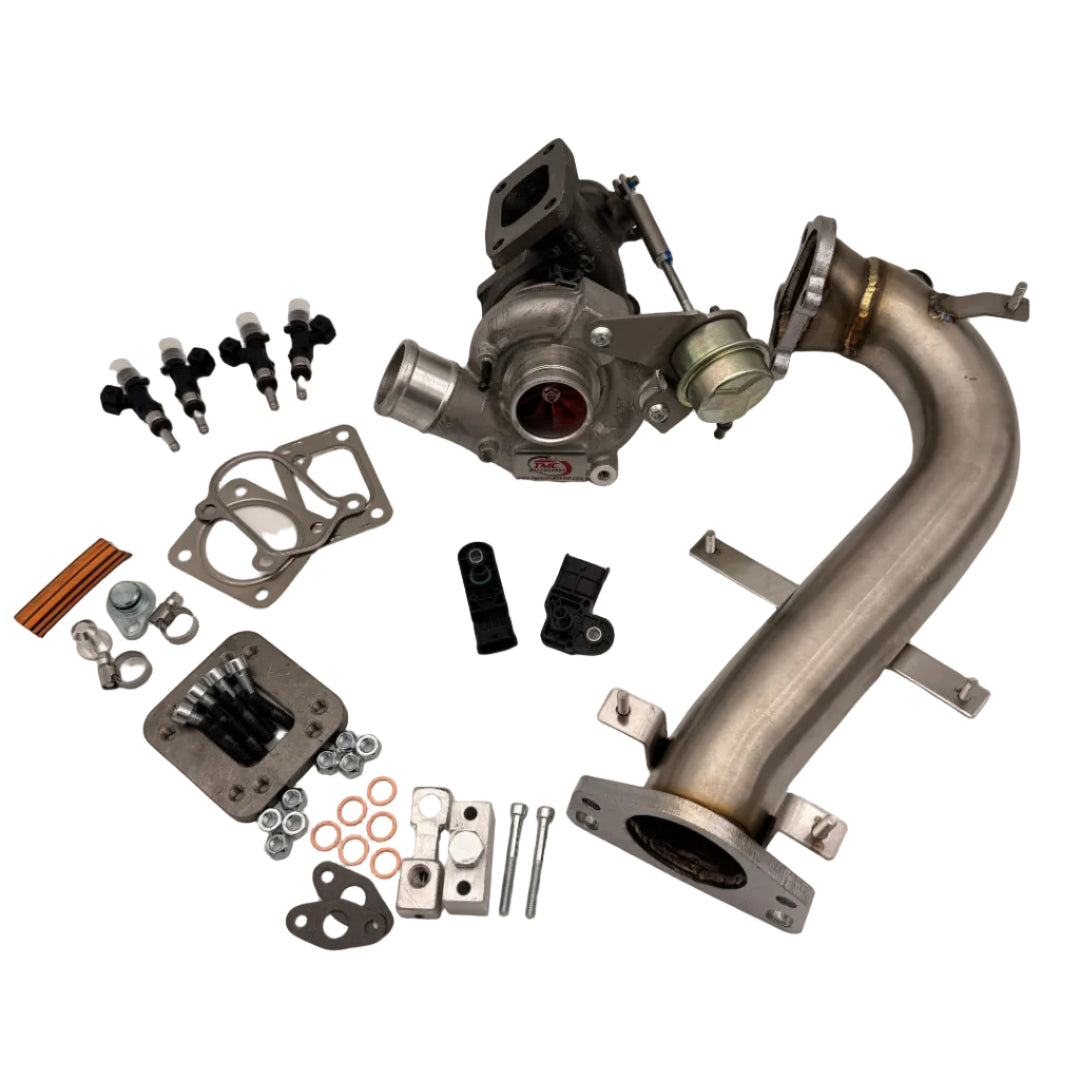

What’s Included in the Full Kit

TD04L-PHASE 2 Hybrid Turbocharger
Genuine Mitsubishi core, professionally balanced
Larger red 7075 aluminium (Ergal) compressor impeller
22 mm outlet for increased airflow
860 °C continuous rating (920 °C peak)
0.6 bar actuator
De-cat downpipe
Modified oil hose and oil spacer bolts
7075 aluminium (Ergal) water line blanking cap

MultiAir-specific components (Punto Evo):
Blow-off valve relocation adapter (included)

Flanges, gaskets, clamps, bolts, and all required fitting hardware

Euro 6 kits include an uprated Pierburg valve for improved boost stability.

Important Notes

Bosch 3-bar MAP and boost sensors are not included, as both Punto Evo MultiAir and Grande Punto T-Jet models are factory-equipped.

Injector requirements depend on engine type and calibration:
• MultiAir models typically retain factory injectors up to ~250 BHP
• Higher power levels may require injector upgrades

Genuine Quality – No Compromises

This turbo kit is developed in partnership with Saito Italy, the authorised European Mitsubishi turbo distributor. All kits include 100% genuine Mitsubishi components, professionally modified and balanced for durability, consistency, and real-world performance.

Warning: Low-cost imitation turbochargers are known to fail under load, risking catastrophic engine damage. We supply proven hardware designed for serious builds.

If it seems too good to be true, it probably is.

Fitment & Compatibility

Abarth Punto Evo – 1.4 MultiAir
Abarth Grande Punto – 1.4 T-Jet

ECU recalibration required after installation
Not compatible with factory downpipe
Intended for off-road or motorsport use

Please select the correct variant for your engine type, or contact us if you are unsure.

Still Unsure?

Get in touch. We’re happy to confirm compatibility, recommend supporting modifications, and help you build the right setup for your Punto the first time.
