For BMW E30 inc M3 (1982 - 1991) Powerflex Heritage Rear Beam Mounting Bush PFR5-305H

BMW

E30 inc M3 (1982 - 1991)

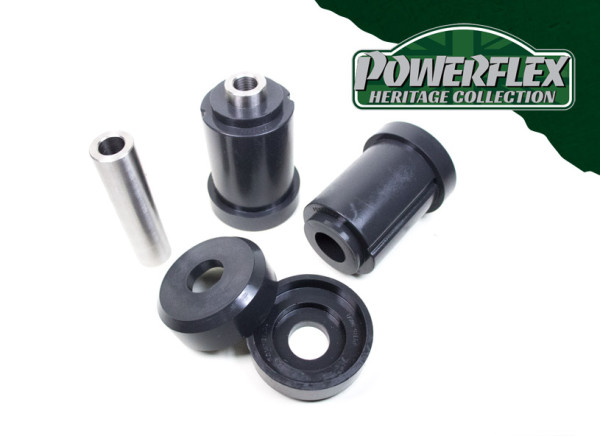

Powerflex Heritage Rear Beam Mounting Bush

PFR5-305H

POWERFLEX Heritage Series bushes are manufactured using modern day materials with properties biased for the road. These dark grey coloured bushes will improve any collectors car, whilst retaining the same standard appearance of a rubber bush.

Diagram Position: 4

Number of Bushes Supplied: 2

OEM Number: 33311129144

OEM Number: 33311130537

Warranty: Lifetime

Range: Heritage Series (Classic Grey)

Fitting Guide:
1. Remove the original rubber rear beam to chassis mount bushes, and retain the original washers from the beam.
2. Clean any dirt or corrosion from the beam, and file off any sharp edges.
3. Push the larger polyurethane part marked 5-305A into the beam from below.
4. From the top of the beam, place the smaller polyurethane part B, labelled 5-305B, onto the end of polyurethane part A.
5. Apply some of the supplied grease to the bore of the polyurethane parts and push the stainless steel sleeve into the bore of the bushes so it sits flush inside them. Ensure that the polyurethane part B is straight on top of part A.
6. Reassemble the beam back to the car using the original nuts and bolts, including the original washer.
7. Tension all hardware to manufacturers recommended torque settings.​​​​​​​
