TMC Abarth Tuning "5° ANNIVERSARIO" Limited Edition Oil Pan / Sump By Prometeo for Abarth 500 / 595 / 695

To celebrate the 5th Anniversary of Abarth Tuning, Prometeo SRL is proud to present this exclusive Limited Edition "TMC Abarth Tuning 5° Anniversario" Oil Pan. This special collaboration with TMC Motorsport represents five years of passion, dedication, and excellence in the Abarth community. Finished in our signature silvery-blue coating, this Limited Edition Oil Pan embodies the perfect fusion of Italian craftsmanship and motorsport heritage. Each pan is not merely a performance component, but a commemorative piece of automotive art that celebrates half a decade of Abarth Tuning's commitment to the Scorpion brand. This exclusive release honors the journey we've shared and the passionate community that makes it all worthwhile.

Product Specifications

Prometeo Oil Pan kit is constituted by:

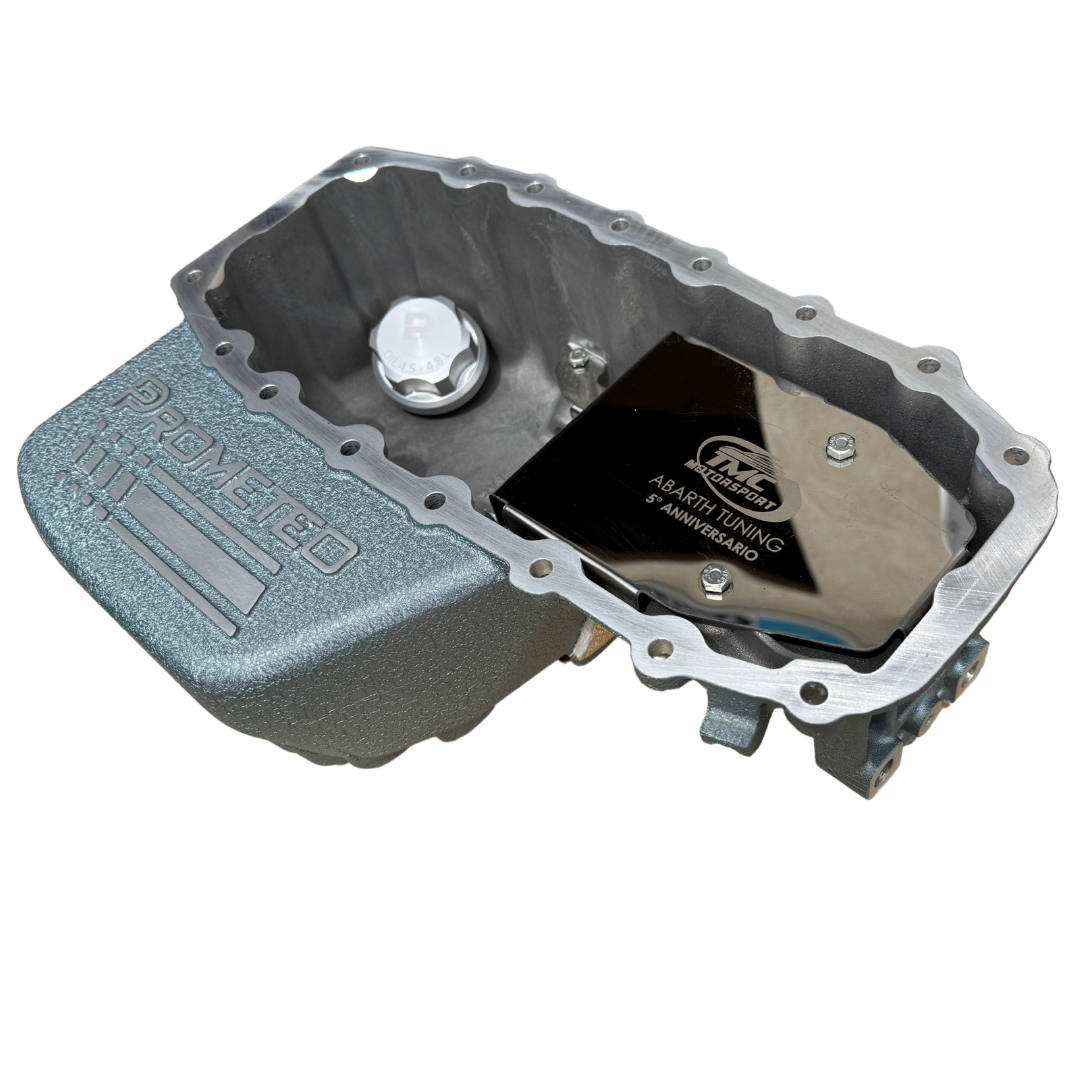

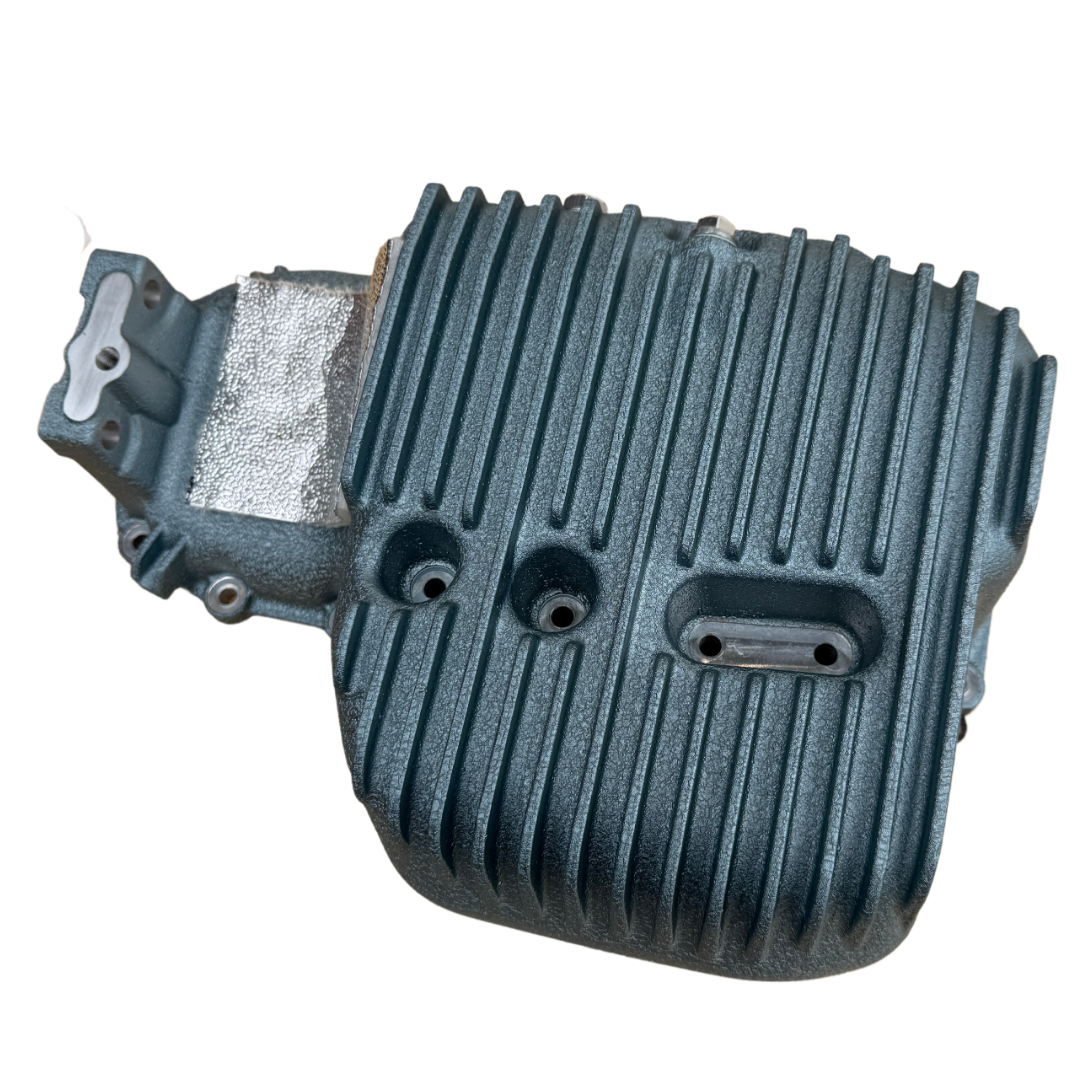

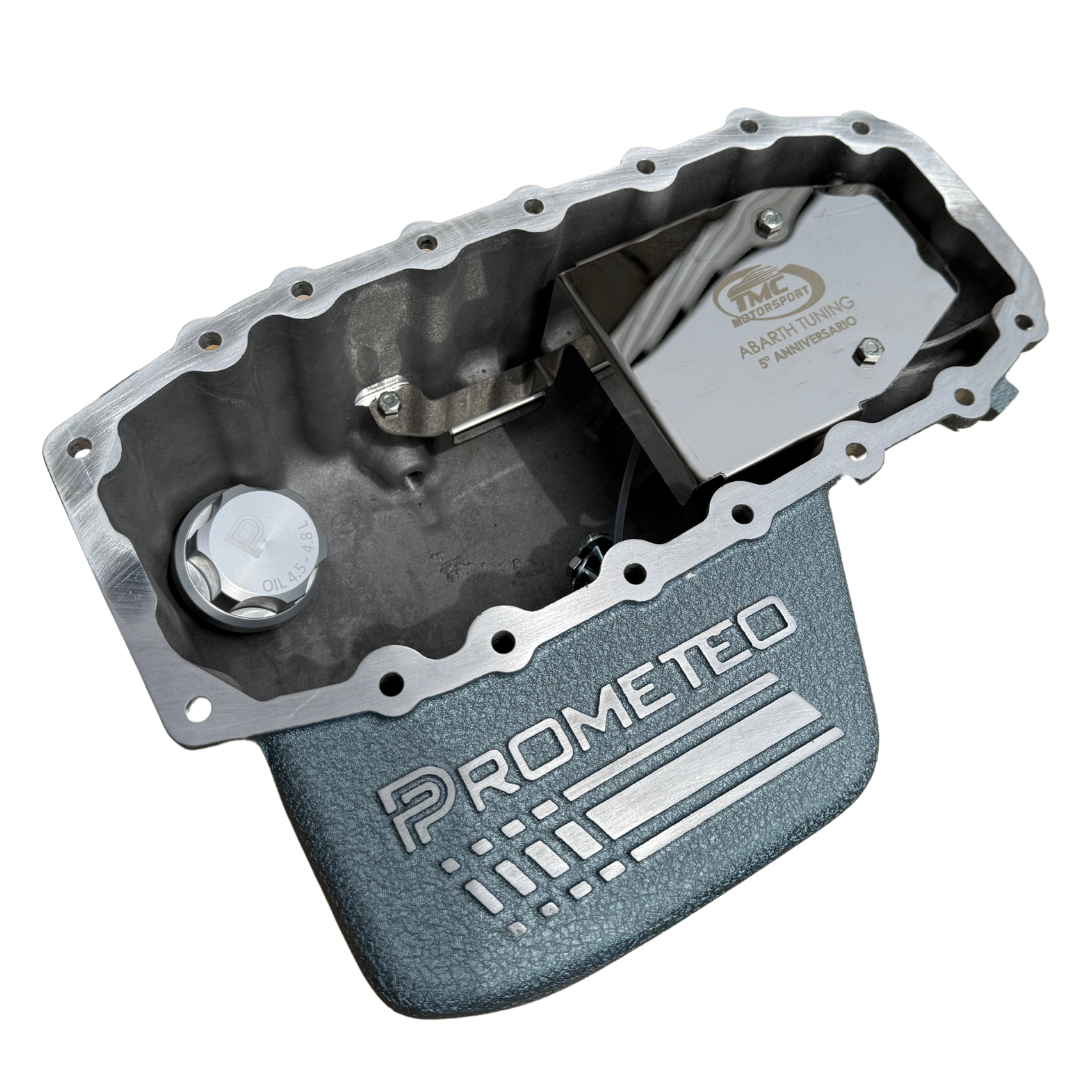

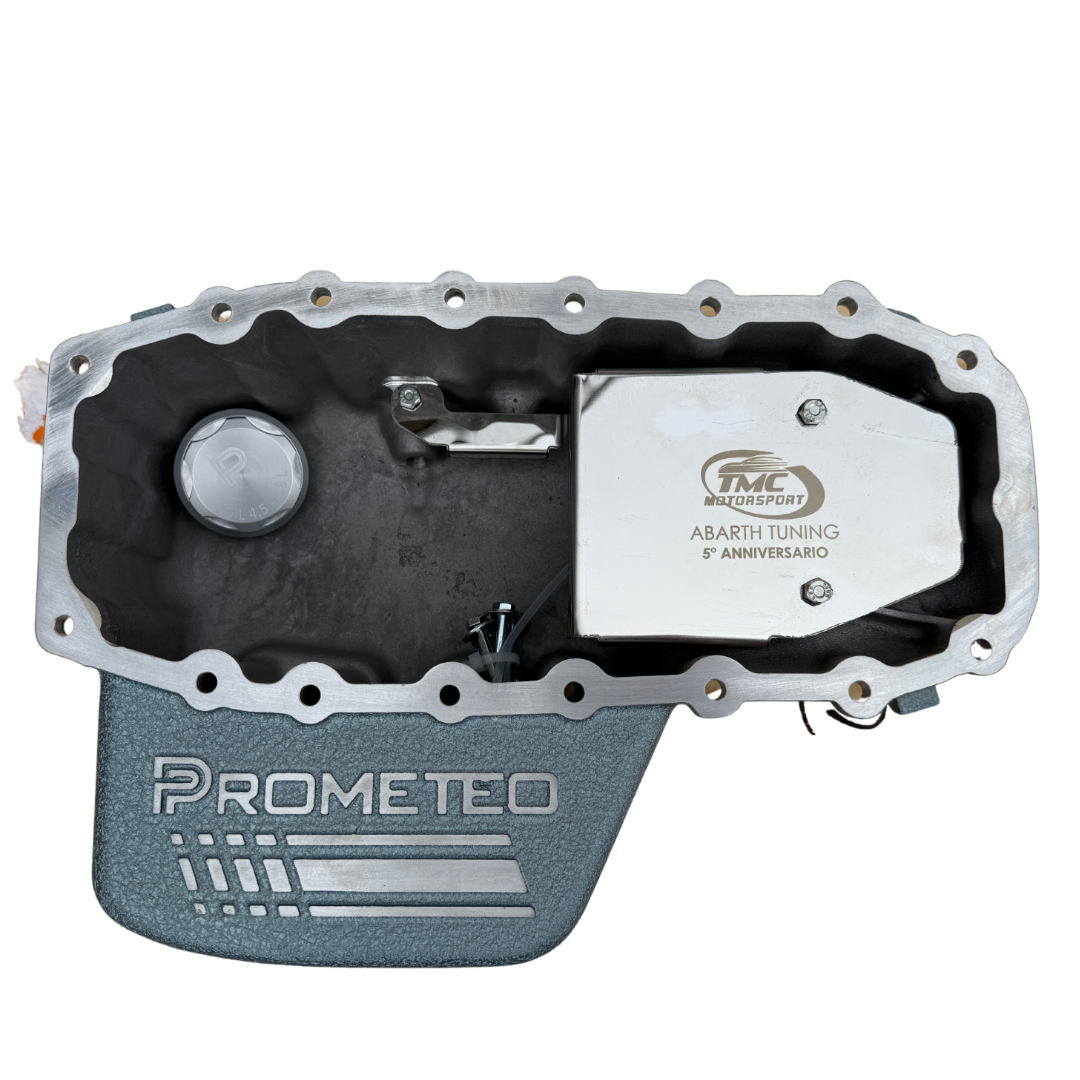

• Increased capacity oil pan with signature silvery-blue finish, including anti-shaking bulkhead, exhaust heat insulating panel, magnetic oil drain plug (M14x1.5) and temperature sensor hole plug (M14×1.5)
• Oil filling plug anodised silver in colour with gasket
• 4 screws M6 × 95

Compatibility:

• Abarth 500 T-Jet Engines ONLY
• Abarth 595 T-Jet Engines ONLY
• Abarth 695 T-Jet Engines ONLY

⚠️ NOT compatible with MultiAir engines

Installation Notes

Prometeo Oil Pan kit does NOT include the sealant needed to seal the junction between oil pan and engine block. Prometeo Oil Pan entirely replaces standard oil pan.

With fixing dimensions substantially identical to standard pan, the assembly is similar to the original one.

Installation Requirements:

• It's mandatory to remove old sealant from engine block flange and restore sealing with a good quality mastic. Use, for instance, original Fiat sealing mastic.
• Drain plugs M14x1.5 have to be tightened with a contained torque of max 10-12 Nm in order to prevent damages to seal ring and threads.

Performance Specifications

IMPORTANT: Prometeo oil pan allows an extra oil capacity of 2 liters (0.53 US gal) respect to standard one. To set the correct oil level, follow the marks on the standard dipstick; note that, with level on maximum mark, the pan is full of 4.5 - 4.8 liters (1.2-1.3 US gal).

Professional Installation Required

IMPORTANT: Prometeo Oil Pan assembling must be done by a professional mechanic skilled in engine tuning. As indication, M6 screws should be tightened at a torque of 10 Nm (7.4 ft lb).

Exclusivity & Collectibility

🏆 ULTRA LIMITED EDITION - ONLY 3 EVER PRODUCED

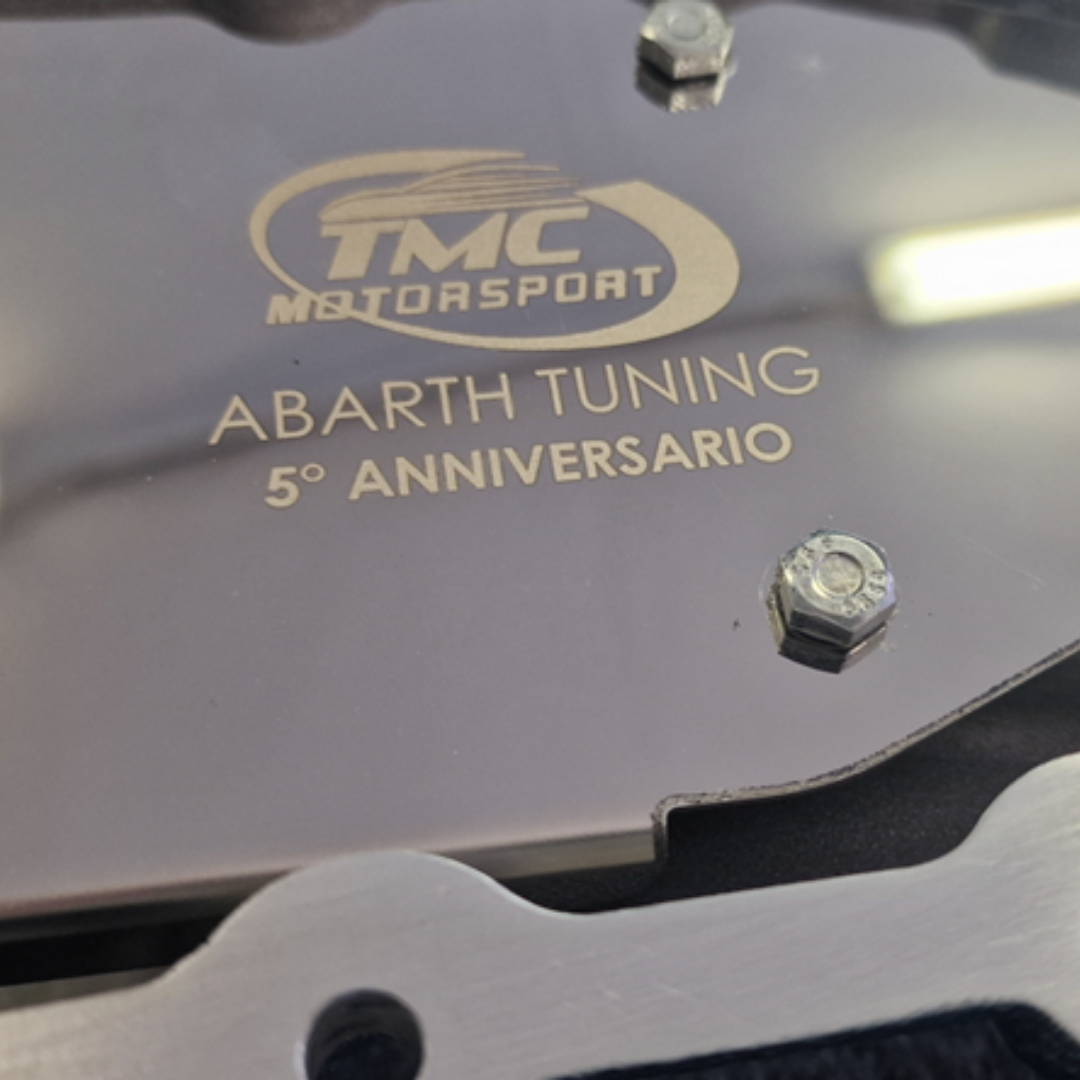

Each individual pan features a unique commemorative plaque displaying "TMC Motorsport Abarth Tuning 5° Anniversario Limited Edition.

This is a hand-finished product in our exclusive silvery-blue coating, so signs of artisanal crafting may be visible on the product, adding to its authentic, handmade character.

These will be sold on a first come, first serve basis - once the 3 units are sold, this edition will NEVER be available again.

Racing Heritage & Legal Notices

IMPORTANT: Prometeo Oil Pan Kit is a sports product, designed for racetrack use only.

IMPORTANT: Prometeo is not responsible for damages to people and objects due to improper assembly or misuse of the Oil Pan Kit or its parts.

Celebrating 5 years of Abarth Tuning excellence - a true collector's piece for the most dedicated Abarth enthusiasts.
