AIRTEC Motorsport Stage 1 Front Mount Intercooler Upgrade for Mk1 Mazda 3 MPS

AIRTEC Motorsport huge front mount intercooler for the Mazda 3 MPS Mk1.

A much needed upgrade for your remapped Mazda MPS.

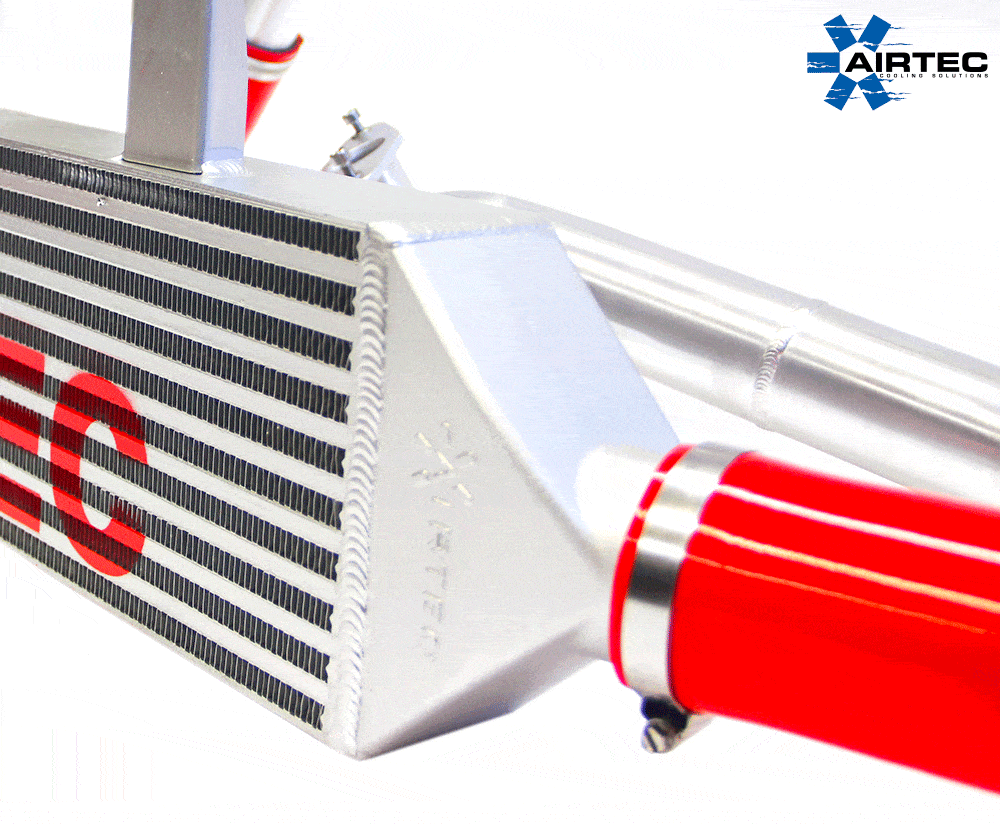

Featuring a 70mm core with flowed cast end tanks, the intercooler requires no cutting to the bumper and retains the crash bar and fog lights. Finished in a high-quality black powder coat, the comprehensive kit comes with Pro Hoses silicone connectors with stainless-steel jubilee clips as well as all fixtures and fittings required to fit, including a detailed installation guide.

TESTED

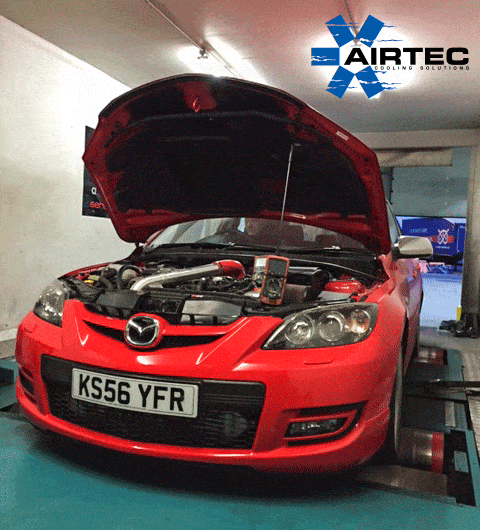

Test results taken on the AIRTEC Motorsport demo car.

Standard top mount intercooler:
Run 1
In – 160.5 degrees
Out – 70.7 degrees

Run 2
In – 160.6 degrees
Out – 70.4 degrees

Run 3
In – 162.1 degrees
Out – 73.9 degrees

AIRTEC Stage 3 intercooler
Run 1
In – 123.7 degrees
Out – 23.8 degrees

Run 2
In – 119.2 degrees
Out – 22.6 degrees

Run 3
In – 120.1 degrees
Out – 22.8 degrees

Dimensions:
Width: 740mm
Height: 170mm
Depth: 70mm
Capacity: 8.8 litres
Frontal area: 1,258cm²

Features:

• 70mm core with flowed cast end tanks
• High quality silicone hoses supplied with stainless jubilee clips
• Retains original crash bar and fog lights
• No cutting to bumper needed
• Fitting instructions supplied along with all required fittings
• Proven power increase
• Available in Pro Series black
• AIRTEC 3 year unlimited mileage warranty
• Fitting takes approximately 2-3 hours

NOW AVAILABLE IN PRO-SERIES BLACK ONLY!

Registered Design Right number: 6023247

AIRTEC part number: ATINTMAZ01
